Structures

Structures

• A structure is composed of multiple elements or parts.
• The elements (or members or fields) are heterogenous.
• It differs from an array in that each element can be of a different type.
• Arrays are homogeneous structures where all elements are of the same type.
• A structure is known as a User-Defined Type (UDT), because you are creating a new type in the C language.
• Structures are very useful when several pieces of information are related in some way.
• student record (name, age, address, phone number, etc.)
• 3D point (x, y, and z coordinates)
• game object (color, size, position, velocity, etc.)

The general syntax of a struct:

struct tag { members } variable-list;

struct tag
{
  member1
  member2
   ...
  memberN
} variable-list;

• The tag or variable-list are optional (you need at least one of them).
• The structure definition must have at least one member, or else the behavior is undefined (may generate a compiler warning or error).
• The definition must end with a semicolon.

Create a structure type named TIME, (no space is allocated at this point):

Structure	Layout
struct TIME { int hours; int minutes; int seconds; };

• By including the optional tag, we are giving the structure a name.
• Giving the structure a name allows us to create TIME variables later on.
• This structure definition acts like a template, in that it will be used to create TIME objects at a later time. (Think of this structure as you would a built-in type like int or double.)

struct TIME t1, t2; /* You must include the struct keyword */
int t3[3];          /* An array of 3 integers              */

Assigning values to the fields: (Operator precedence chart)

/* Set the fields of t1 */ t1.hours = 8; t1.minutes = 15; t1.seconds = 0;	/* Set the fields of t2 */ t2.hours = 11; t2.minutes = 59; t2.seconds = 59;	/* Set the elements of t3 */ t3[0] = 8; t3[1] = 15; t3[2] = 0;

• Accessing members of a structure is a common operation.
• Array elements are accessed anonymously using offsets from the address of the array.
• Structure members are accessed by name using the structure member operator, which is the period (a.k.a. decimal point).
• Internally, the member name is converted to an offset by the compiler.
• For example, the seconds field is always 8 bytes from the start of the structure.
• The structure member operator has a higher precedence than most operators.
• Unlike arrays, a structure can be assigned to another structure:

    /* Print out the times */
  printf("Time 1 is %02i:%02i:%02i\n", t1.hours, t1.minutes, t1.seconds);
  printf("Time 2 is %02i:%02i:%02i\n", t2.hours, t2.minutes, t2.seconds);

    /* Assign all fields from t2 to t1 (Legal for structures, illegal for arrays) */
  t1 = t2;

    /* Print out the times again */
  printf("Time 1 is %02i:%02i:%02i\n", t1.hours, t1.minutes, t1.seconds);
  printf("Time 2 is %02i:%02i:%02i\n", t2.hours, t2.minutes, t2.seconds);

  Output:
  Time 1 is 08:15:00
  Time 2 is 11:59:59
  Time 1 is 11:59:59
  Time 2 is 11:59:59


• Note that you cannot print an entire structure with a single printf format specifier. (You must print each member individually.)
• A structure is sometimes called a User-Defined Type or UDT because the programmer has just defined or "invented" a new type.

Initializing Structures

Structure definition	Initializing TIME variables
struct TIME { int hours; int minutes; int seconds; };	struct TIME t1 = {10, 15, 0}; /* 10:15:00 */ struct TIME t2 = {10, 15}; /* 10:15:00 */ struct TIME t3 = {10}; /* 10:00:00 */ struct TIME t4 = {0}; /* 00:00:00 */ struct TIME t5 = {}; /* Illegal */ struct TIME t6 = { , , 5}; /* Illegal */

Structure definition	Initializing STUDENT variables
struct STUDENT { char first_name[20]; char last_name[20]; int age; float GPA; };	/* Initialization statement */ struct STUDENT s1 = {"Johnny", "Appleseed", 20, 3.75F}; /* Equivalent assignment statements */ strcpy(s1.first_name, "Johnny"); strcpy(s1.last_name, "Appleseed"); s1.age = 20; s1.GPA = 3.75F; /* Don't try and do this (you can't use assignment with arrays) */ s1.first_name = "Johnny"; /* Illegal */ s1.last_name = "Appleseed"; /* Illegal */

Review of array initialization vs. assignment:

char string[20]; /* Array of 20 characters, uninitialized */

string = "Johnny";        /* Illegal, "pointer" is const  */
strcpy(string, "Johnny"); /* Proper assignment            */

Structure definition

Initializing STUDENT variables

struct STUDENT { char first_name[20]; char last_name[20]; int age; float GPA; };

/* Initialize all fields */ struct STUDENT s2 = {"Tom", "Sawyer", 15, 1.30F}; /* Set age and GPA to 0 */ struct STUDENT s3 = {"Huckleberry", "Finn"}; struct STUDENT s4 = {""}; /* Initialize everything to 0 */ struct STUDENT s5 = {{0}}; /* Initialize everything to 0 */ /* Initializing arrays */ char first_name[20] = 0; /* Illegal, need curly braces */ char first_name[20] = {}; /* Illegal, need at least one value */ char last_name[20] = ""; /* Ok, all elements are 0 */ char last_name[20] = {0}; /* Ok, all elements are 0 */

Structure definition	Initializing STUDENT2 variables
struct STUDENT2 { char *first_name; char *last_name; int age; float GPA; };	/* Initialization statement */ struct STUDENT2 s1 = {"Johnny", "Appleseed", 20, 3.75F}; /* Equivalent assignment statements */ s1.first_name = "Johnny"; s1.last_name = "Appleseed"; s1.age = 20; s1.GPA = 3.75F; strcpy(s1.first_name, "Johnny"); /* BAD IDEA */ strcpy(s1.last_name, "Appleseed"); /* BAD IDEA */

What is sizeof(struct STUDENT2)?

More review of pointers vs. arrays and initialization vs. assignment:

char s1[20] = "CS120"; /* sizeof(s1)?, strlen(s1)? */
char s2[20];           /* sizeof(s2)?, strlen(s2)? */

char *p1 = "CS120";    /* sizeof(p1)?, strlen(p1)? */
char *p2;              /* sizeof(p2)?, strlen(p2)? */

s2 = "CS120";          /* Illegal                  */
strcpy(s2, "CS120");   /* OK                       */

p2 = "CS120";          /* OK                       */
strcpy(p2, "CS120");   /* Legal, but very bad      */

There is a caveat when initializing a structure with fewer initializers than there are fields in the struct. The GNU compiler will give you warnings with the -Wextra switch:

 1.  struct TIME
 2.  {
 3.    int hours;
 4.    int minutes;
 5.    int seconds;
 6.  };
 7.
 8.  struct TIME t1 = {10, 15, 0}; /* 10:15:00, no warning */
 9.  struct TIME t2 = {10, 15};    /* 10:15:00, warning    */
10.  struct TIME t3 = {10};        /* 10:00:00, warning    */
11.  struct TIME t4 = {0};         /* 00:00:00, no warning */

main2.c:9: warning: missing initializer
main2.c:9: warning: (near initialization for `t2.seconds')
main2.c:10: warning: missing initializer
main2.c:10: warning: (near initialization for `t3.minutes')

Here's what we're dealing with in CS180: task_struct.

Structures as Parameters

Given this structure:

struct TIME
{
  int hours;   /* 4 bytes */
  int minutes; /* 4 bytes */
  int seconds; /* 4 bytes */
};

Function to print a TIME	Calling the function
void print_time(struct TIME t) { printf("The time is %02i:%02i:%02i\n", t.hours, t.minutes, t.seconds); }	void foo(void) { /* Create time of 10:30:15 */ struct TIME t = {10, 30, 15}; /* Pass by value and print */ print_time(t); } Output: The time is 10:30:15

A more expensive example:

struct STUDENT
{
  char first_name[20]; /* 20 bytes */
  char last_name[20];  /* 20 bytes */
  int age;             /*  4 bytes */
  float GPA;           /*  4 bytes */
};

Function to print a STUDENT	Calling the function
void print_student(struct STUDENT s) { printf("Name: %s %s\n", s.first_name, s.last_name); printf(" Age: %i\n", s.age); printf(" GPA: %.2f\n", s.GPA); }	void foo(void) { struct STUDENT s1 = {"Johnny", "Appleseed", 20, 3.75F }; print_student(s1); } Output: Name: Johnny Appleseed Age: 20 GPA: 3.75

We'll see soon that passing a pointer to a structure is the proper way to do it.

Here's something that confuses beginners:

  /* Initialization statements */
struct STUDENT s1 = {"Johnny", "Appleseed", 20, 3.57F};
struct STUDENT s2 = {"Huckleberry", "Finn", 18, 3.75F};

s1 = s2; /* assign s2 to s1 (assigns arrays!) */

So, if you really, really want to pass an array to a function by value (as opposed to passing a pointer to the first element), just put the array in a structure and pass the structure. The entire array within the structure is copied on the stack.

Also, this only works when you assign the entire structure. If you just try to do this:

s1.first_name = s2.first_name;

error: assignment to expression with array type
   s1.first_name = s2.first_name;
                 ^

Structures as Members

#define MAX_PATH 12

struct DATE { int month; int day; int year; };

struct TIME { int hours; int minutes; int seconds; };

struct DATETIME { struct DATE date; struct TIME time; };

struct FILEINFO { int length; char name[MAX_PATH]; struct DATETIME dt; };

Notice the DATE and TIME structures above. They are structurally the same, but are considered two different (and incompatible) types. The C programming language (and C++, as well) don't consider them the same because C uses name equivalence instead of structural equivalence.

struct FILEINFO fi;

struct DATE { int month; int day; int year; };

struct TIME { int hours; int minutes; int seconds; };

struct DATETIME { struct DATE date; struct TIME time; };

struct FILEINFO { int length; char name[MAX_PATH]; struct DATETIME dt; };

void f1(void)
{
  struct FILEINFO fi;   /* Create FILEINFO struct on stack */

    /* Set date to 7/4/2021 */
  fi.dt.date.day = 4;
  fi.dt.date.month = 7;
  fi.dt.date.year = 2021;

    /* Set time to 9:30 am */
  fi.dt.time.hours = 9;
  fi.dt.time.minutes = 30;
  fi.dt.time.seconds = 0;

  fi.length = 1024;           /* Set length */
  strcpy(fi.name, "foo.txt"); /* Set name   */
}

www.digipen.edu
faculty.digipen.edu
www.yahoo.com
uk.yahoo.com
au.yahoo.com

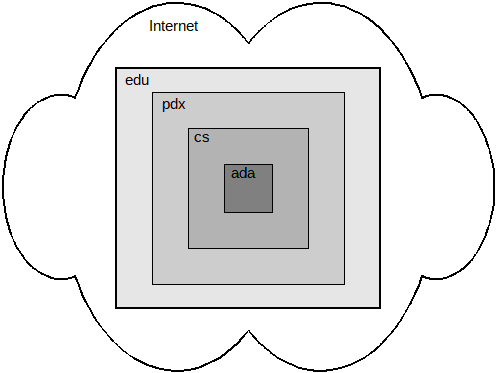

ada.cs.pdx.edu

ada.cs.pdx.edu

                  /* length    name               DATETIME           */
                  /* length    name          DATE         TIME       */
                  /* length    name       m  d    y     h  m   s     */
struct FILEINFO fi = {1024, "foo.txt", { {7, 4, 2021}, {9, 30, 0} } };

struct FILEINFO fi = {0};

void f2(void)
{
  struct FILEINFO fi;         /* Create FILEINFO struct on stack */
  struct FILEINFO *pfi = &fi; /* Pointer to a FILEINFO struct    */

    /* Set date to 7/4/2021 */
  (*pfi).dt.date.day = 4;
  (*pfi).dt.date.month = 7;
  (*pfi).dt.date.year = 2021;

    /* Set time to 9:30 am */
  (*pfi).dt.time.hours = 9;
  (*pfi).dt.time.minutes = 30;
  (*pfi).dt.time.seconds = 0;

  (*pfi).length = 1024;           /* Set length */
  strcpy((*pfi).name, "foo.txt"); /* Set name   */
}

*(pfi.dt.date.day) = 4;

Accessing a member of a pointer:

  /*  error: request for member 'length' in something not a structure or union */
pfi.length = 1024;

Expression     Description
-------------------------------------------------------------------------------
pfi            A pointer to a FILEINFO struct
*pfi           A FILEINFO struct
(*pfi).        Accessing a member of a pointer to a FILEINFO struct
pfi->          Accessing a member of a pointer to a FILEINFO struct (shorthand)

(*pfi).  is the same as   pfi->

  /* Set date to 7/4/2021 */
pfi->dt.date.month = 7;
pfi->dt.date.day = 4;
pfi->dt.date.year = 2021;

  /* Set time to 9:30 am */
pfi->dt.time.hours = 9;
pfi->dt.time.minutes = 30;
pfi->dt.time.seconds = 0;

pfi->length = 1024;           /* Set length */
strcpy(pfi->name, "foo.txt"); /* Set name   */

Arrays vs. Structures vs. Built-in Types

Unlike arrays, which prohibit most aggregate operations, it is possible in some cases to manipulate structures as a whole.

Operation	Arrays	Structures	Built-in types (e.g. int)
Arithmetic	No	No	Yes
Assignment	No	Yes	Yes
Comparison	No	No	Yes
Input/Output (e.g. printf)	No (except strings)	No	Yes
Parameter passing	By address only	By address or value	By address or value
Return from function	No	Yes	Yes

According to the chart above, it is possible to return a structure from a function. What this allows us to do is to return multiple values from a function. We will still only be returning a single object, but that single object (a struct) may contain any number of members and each member may be a different type with a different value. This can be a very convenient way of returning multiple values/types from a function instead of returning them through pointers.

Structures as Parameters (revisited)

Function to print a STUDENT (more efficient)	Calling the function
void print_student2(struct STUDENT *s) { printf("Name: %s %s\n", s->first_name, s->last_name); printf(" Age: %i\n", s->age); printf(" GPA: %.2f\n", s->GPA); } Output: Name: Johnny Appleseed Age: 20 GPA: 3.75	void f12(void) { struct STUDENT s1 = {"Johnny", "Appleseed", 20, 3.75F }; print_student2(&s1); }

Note:

• In practice, you will rarely pass a structure (by value) to a function, unless it is quite small. You will almost always pass a pointer instead.
• Passing structures to functions by value can be very expensive. Unfortunately, compilers won't warn you when you do so.
• Be sure to remember to use the const keyword if your function does not modify the structure that was passed in. So, the proper way to write the above function is like this:

  void print_student2(const struct STUDENT *s)


  This guarantees that the function won't be changing things that it's not supposed to be changing. This is also the most common way of passing structures to functions.

Summary of struct Syntax

struct tag { members } variable-list;

struct tag
{
  member1
  member2
   ...
  memberN
} variable-list;

struct TIME
{
  int hours;
  int minutes;
  int seconds;
};

struct TIME t1, t2; /* The struct keyword is required */

error: unknown type name 'TIME'
 TIME t1, t2;
 ^

error: must use 'struct' tag to refer to type 'TIME'
TIME t1, t2;
^
struct
1 error generated.

You must include the struct keyword when creating struct variables in C. That's because the type is "struct TIME", not simply "TIME". In C++, the use of the struct keyword is optional when creating variables.

We can do both (define the structure and variables) in one step:

struct TIME
{
  int hours;
  int minutes;
  int seconds;
}t1, t2;            /* This allocates space            */

struct TIME t3, t4; /* Create more TIME variables here */

Leaving off the tag creates an anonymous structure:

struct     /* No name given to this struct */
{
  int hours;
  int minutes;
  int seconds;
}t1, t2;  /* We won't be able to create others later */

Using a typedef to create an alias: (Refer to the notes on typedef.)

struct TIME
{
  int hours;
  int minutes;
  int seconds;
};

typedef struct TIME Time; /* Now, 'Time' is a new type, same as 'struct TIME' */

Time t1, t2;        /* Create two 'Time' variables        */
struct TIME t3, t4; /* Create two 'struct TIME' variables */

t1 = t3; /* OK */
t2 = t4; /* OK */

typedef struct TIME /* tag name     */
{
  int hours;
  int minutes;
  int seconds;
}Time;             /* typedef name */

Time t1, t2;         /* use typedef name                   */
struct TIME t3, t4;  /* use tag name, needs struct keyword */

The tag name and typedef name can be the same:

typedef struct TIME /* tag name            */
{
  int hours;
  int minutes;
  int seconds;
}TIME;              /* typedef same as tag */

TIME t1, t2;        /* use typedef name                     */
struct TIME t3, t4; /* use tag name, needs struct keyword   */

TIME times[10];     /* an array of 10 TIME structs          */
TIME *pt;           /* a pointer to a TIME struct           */
TIME foo(TIME *p);  /* function takes a TIME struct pointer */
                    /*   and returns a TIME struct          */

Usually, when a typedef is created, the struct keyword is not used anymore, simply because it requires extra work (typing) and is unnecessary.

typedef struct /* No tag! */
{
  int hours;
  int minutes;
  int seconds;
}TIME;          /* typedef (no tag) */

TIME t1;          /* use typedef name           */
struct TIME t2;  /* This doesn't work anymore. */

gcc:

error: storage size of 't1' isn't known
 struct TIME t1;
             ^
error: 't1' has an incomplete type
  t1 = t2;
  ^

error: variable has incomplete type 'struct TIME'
struct TIME t1;
            ^
error: incomplete type 'struct TIME' is not assignable
        t1 = t2;
        ~~ ^
error: tentative definition has type 'struct TIME' that is never completed
struct TIME t1;
            ^
note: forward declaration of 'struct TIME'
struct TIME t1;
       ^

struct NODE
{
  int value;
  struct NODE next;  /* illegal */
};

struct NODE
{
  int value;
  struct NODE *next; /* OK */
};

Using a forward declaration and typedef:

typedef struct tagNODE NODE; /* Forward declaration */

struct tagNODE
{
  int value;
  NODE *next; /* Don't need struct keyword because of forward declaration above */
};

typedef struct NODE NODE; /* Forward declaration */

struct NODE
{
  int value;
  NODE *next; /* Don't need struct keyword because of forward declaration above */
};

Two structures that are mutually dependent on each other won't pose any problems. In the source file, one of the definitions must come after the other. The use of the struct keyword gives the compiler enough information:

struct A
{
  int value;
  struct B *b; /* B is a struct, defined later */
};

struct B
{
  int value;
  struct A *a; /* A is a struct */
};

struct A
{
  struct A *pa; /* Need struct keyword, type is 'struct A' */
  struct B *pb; /* Need struct keyword, type is 'struct B' */
};

struct B
{
  struct A *pa; /* Need struct keyword, type is 'struct A' */
  struct B *pb; /* Need struct keyword, type is 'struct B' */
};

struct A a; /* Need struct keyword */
struct B b; /* Need struct keyword */

typedef struct
{
  struct A *pa; /* Need struct keyword, haven't seen typedef for A yet */
  struct B *pb; /* Need struct keyword, haven't seen typedef for B yet */
}A;

typedef struct
{
  A *pa;        /* Don't need struct keyword because of typedef above  */
  struct B *pb; /* Need struct keyword, haven't seen typedef for B yet */
}B;

A a; /* OK because of typedef */
B b; /* OK because of tyepdef */

typedef struct A A; /* Forward declaration, compiler knows what the symbol A is */
typedef struct B B; /* Forward declaration, compiler knows what the symbol B is */

struct A
{
  A *pa; /* Don't need struct keyword because of forward declaration above */
  B *pb; /* Don't need struct keyword because of forward declaration above */
};

struct B
{
  A *pa; /* Don't need struct keyword because of forward declaration above */
  B *pb; /* Don't need struct keyword because of forward declaration above */
};

A a; /* OK, typedef */
B b; /* OK, typedef */

• For self-referencing or mutually-dependent structures, you must use pointers to the structs within the structure.
• Forward declarations just give the compiler a clue about the name. There is no information about what is in the structures.
• Since all pointers are the same size, the compiler doesn't need to know what's in the structures until it either needs to know the size, or until some code references a member of a structure.

typedef struct tagA A; /* Forward declaration */
typedef struct tagB B; /* Forward declaration */

struct tagA
{
  A *pa; /* Don't need struct keyword because of forward declaration above */
  B *pb; /* Don't need struct keyword because of forward declaration above */
};

struct tagB
{
  A *fp; /* Don't need struct keyword because of forward declaration above */
  B *pb; /* Don't need struct keyword because of forward declaration above */
};

A a; /* OK, typedef */
B b; /* OK, typedef */

A a1;           /* OK, typedef         */
struct tagA a2; /* Need struct keyword */
